K-1 Outboard Kit with SUN80 Solar Panel
K-1 Outboard Kit with SUN80 Solar Panel
SKU:KI-KSN-2602
Couldn't load pickup availability
The Bixpy K-1 Outboard Kit DOES NOT include a mounting adapter. You will need to purchase a mounting adapter separately based on the watercraft you are trying to motorize. To purchase a mounting adapter, go to bixpy.com/mounting-adapters
Not sure which adapter best fits your watercraft? Easily find the right Bixpy adapter for your watercraft on Bixpy YMM Chart
The Bixpy K-1 Outboard Kit is Bixpy's third major iteration of its, now famous, jet propulsion system that has motorized thousands of kayaks, paddle boards, dinghies, float-tubes and all kinds of personal water craft over the last 10 years.Â
The K-1 Outboard Kit combines the awesome power of the Bixpy K-1 Motor, with 33lb of thrust, and the finely tuned, waterproof, wireless PP-378 Outboard Battery (Version 4)Â to power virtually any personal watercraft on the market.

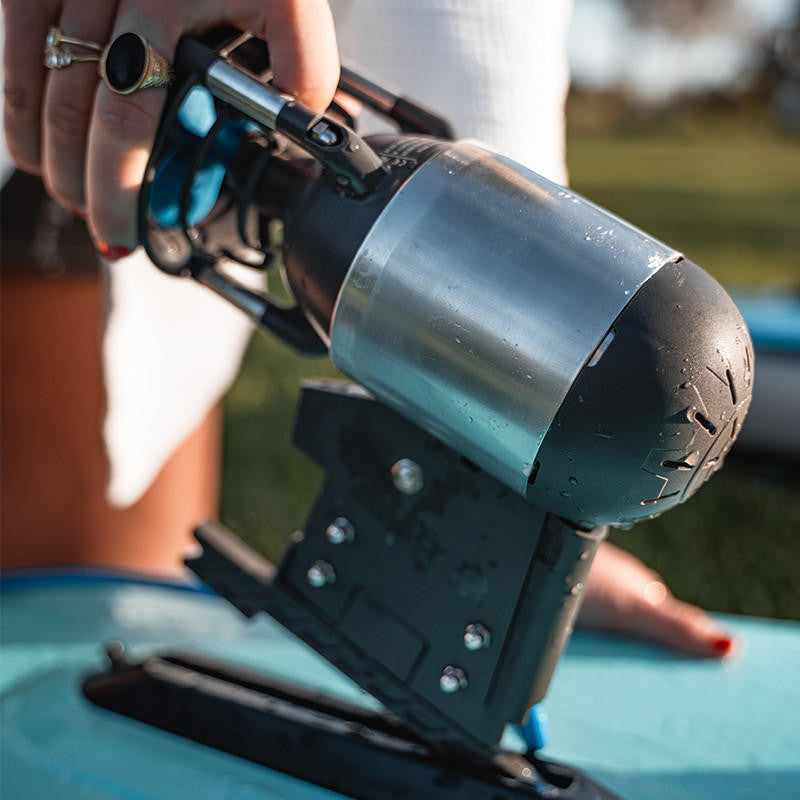

The K-1 Motor is roughly 20% shorter in length than its predecessor, the J-2 Motor, yet offers the same massive output the J-2 motors provided in a quieter, more sleek, and more rugged aluminum housing.

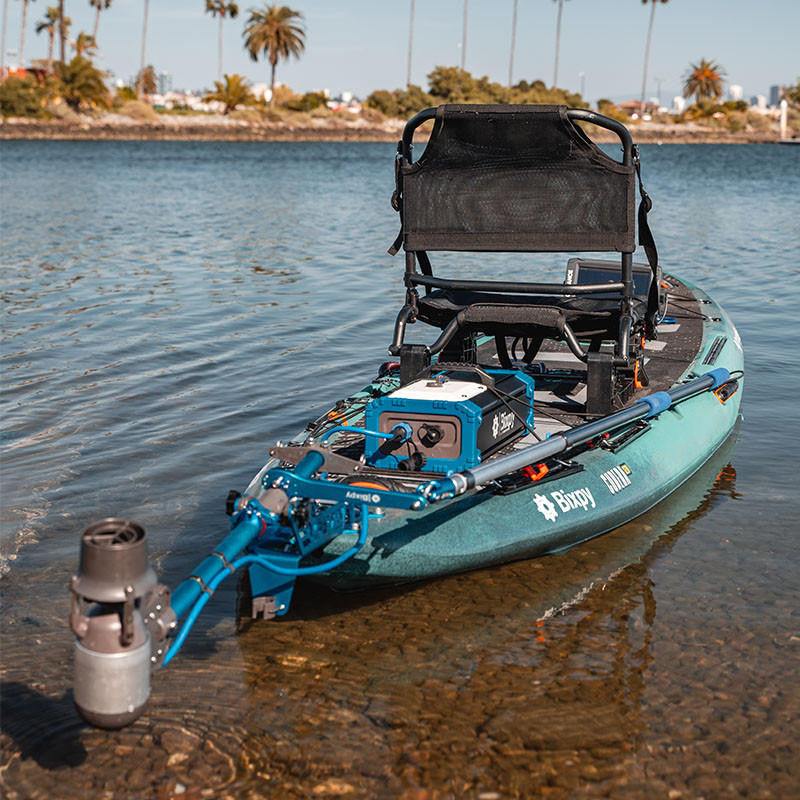

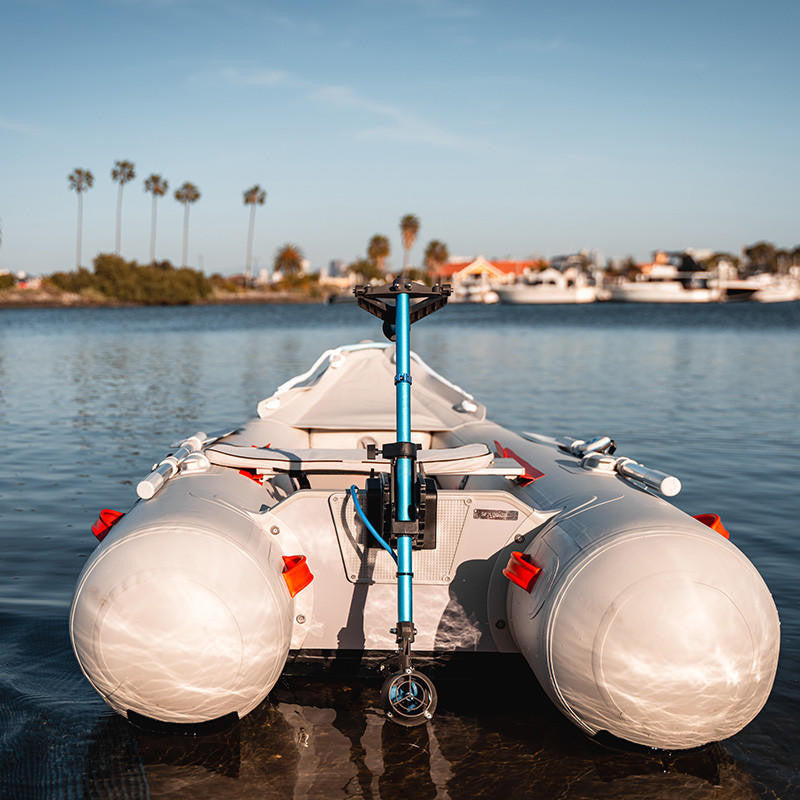

Whether you want to motorize your kayak, canoe, paddle board, float tube, dinghy, inflatable pack-raft, or any number of other small watercraft, the Bixpy Outboard Kit is your answer.
There is nothing else on the market made specifically to give water enthusiasts an ultra-light and super adaptable package to power their boats.

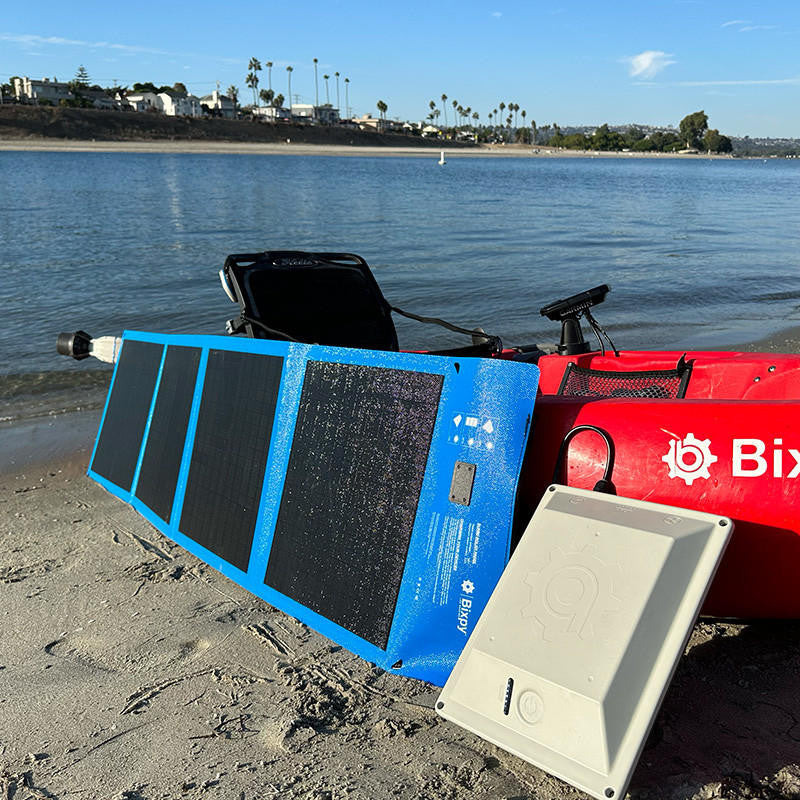

With the SUN80 Solar Panel you can now charge your Bixpy PP-378 Outboard Battery on the move. With 80 watts of output from mono-crystalline cells, this solar panel will charge your Bixpy PP-378 Battery or Bixpy PP-333 Battery in about 6 to 10 hours.
*Note: THIS SOLAR PANEL WILL NOT CHARGE THE BATTERY WHILE THE MOTOR IS RUNNING. DO NOT SIT OR PUT WEIGHT DIRECTLY ON SOLAR PANELS.
The Bixpy Outboard Kit enables you to stay out longer, explore new waters, fish more, troll for hours or just get home effortlessly at the end of a long tiring day on the water, or when the weather turns on you and you need an extra push to get you back.Â
You can update your Bixpy PP-378 battery (version 4 with white lights), PP-768 battery, and remote with the newest firmware by using our Bixpy App. Click here to download the app in the Apple Store and click here to download the app in Google Play.
The Bixpy Outboard Kit can be mounted to any personal watercraft from popular manufacturers such as: Hobie, Old Town, Vanhunks, Hoodoo, Johnny Boats, Perception, Crescent, Oru, Noisy River Outdoors, Jackson, Lightning, Wilderness Systems, Brooklyn Kayak Company, Nucanoe, Kaku, Feelfree, Native Watercraft, Vibe, Viking, Point 65, Riot, Bonafide, Pelican, Gili, iRocker, Isle, Bote, Bluefin, Scout, Atoll, Kokopelli, Sea Eagle, Aquaglide, Advanced Elements, 3 Waters, Akona, Eddyline, Malibu, and many more!
Share

Collapsible content
Features

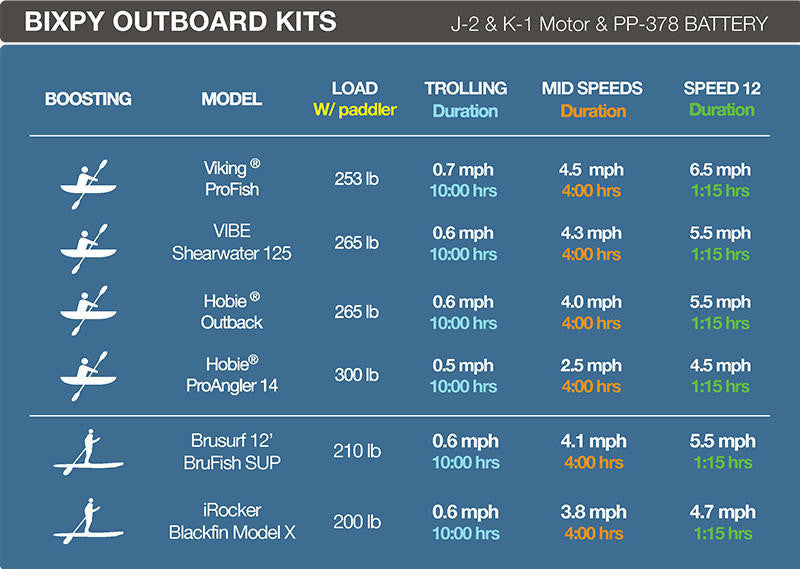

- Runs for approximately 75 minutes at top speed and up to 10 hours at slower speeds.
- The ultralight setup weighs just 11lb (4.9 kg), including the battery and motor.

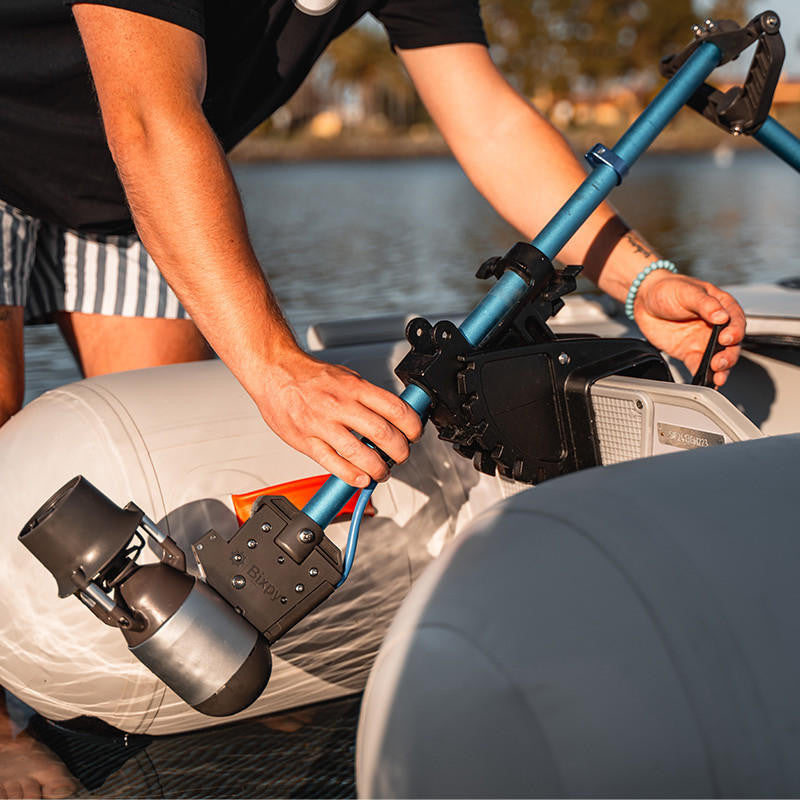

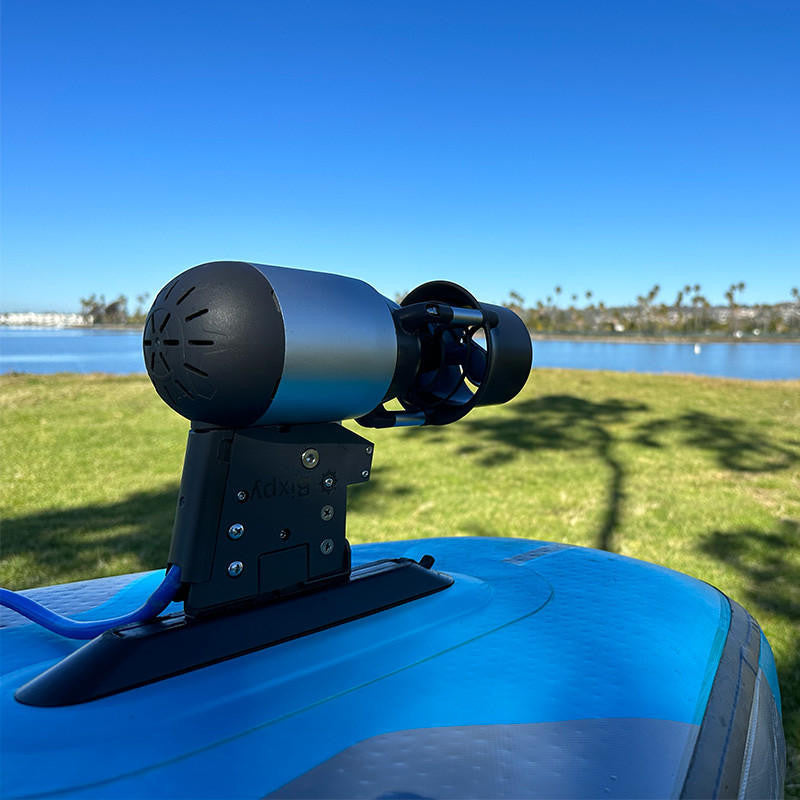

- The quick-release motor can be removed with just one bolt.
- Warp speed feature allows you to reach max speed with a double click.
- Operates via wireless Bluetooth remote control with 12 forward speeds and three reverse speeds.
- Waterproof and dirt-proof with corrosion-resistant components and aluminum body.
- Outboard Power Pack and remote control float in case of accidental slippage.
- SUN80 Solar Panel charges the PP-378 Outboard Power Pack in 6-10 hours.

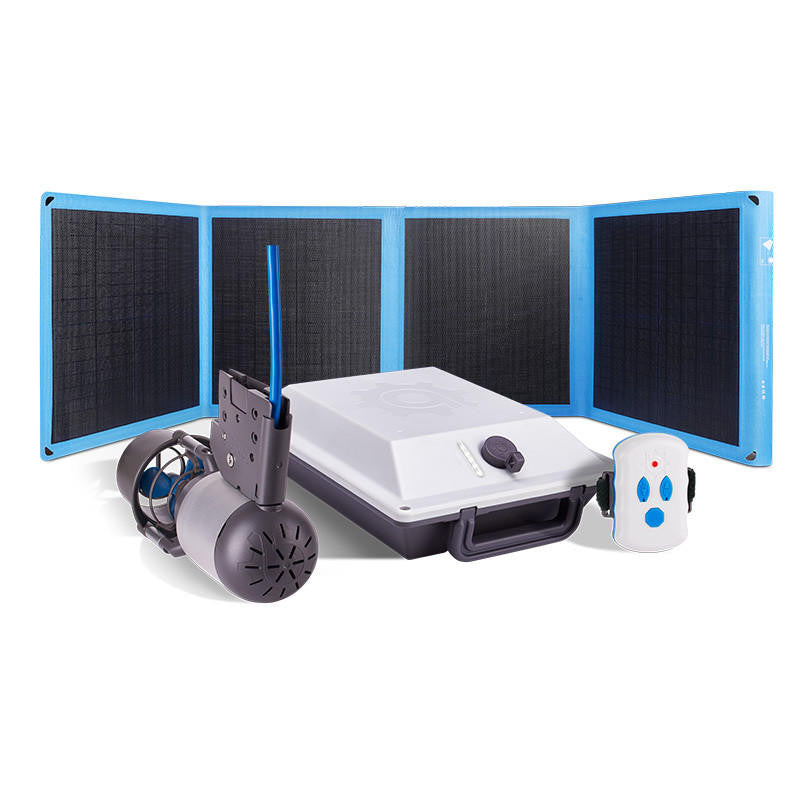

Includes
- Bixpy K-1 Motor.
- Bixpy Outboard Power Pack V4 (384 Wh).
- SUN80 Solar Panel.
- Wireless Remote Control.
- Magnetic kill switch with floating leash.
- Universal 100 - 240V Wall Charger.
- Allen key to open the propeller shroud for cleaning and repairs
- Quick Start User Manual
- Bixpy Vinyl Decal
Specifications
- K-1 MOTOR SPECIFICATIONS:
- Motor Weight including cable and attachment adapter: 2.8 lb

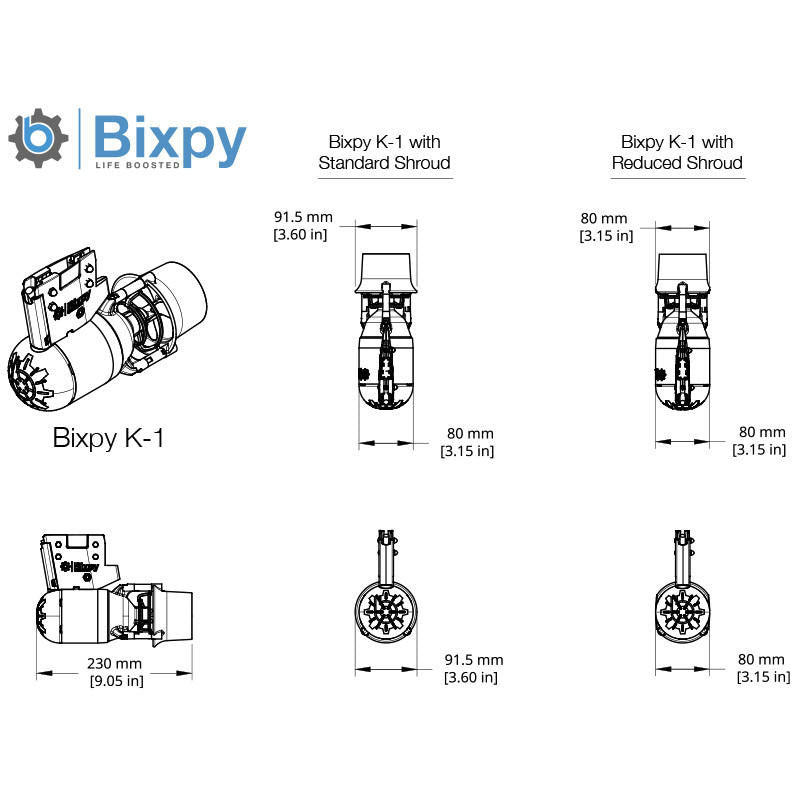

- Motor Size: L: 9.05" (230 mm) • W: 3.6" (91.5 mm) • H: 6.32" (160 mm).
- Full Shroud width: 3.6" (91.5 mm).
- Reduced Shroud width: 3.15" (80 mm).
- Motor output: 33 lb of output with PP-378 battery, 38 lb of output with PP-768 battery.
- Cable length: 55" (140 cm).
- Depth rating: 100 ft (30 m).
- PP-378 POWER PACK SPECIFICATIONS
- Weight: 8lb (3.63 kg)
- Positive Buoyancy
- Power Pack size: L: 11.3" (28 cm) • W: 8.7" (22 cm) • H: 3.2" (8 cm)
- Battery type: LiFePO4 rechargeable
- Voltage: 25.6 Volts
- Watt hours: 384Wh
- Amp hours: 15Ah
- Wall charger recharge time: 5.5 hours
- Solar panel recharge time: 6-10 hours
- Auxiliary outlet: 5V & 12V outputs - 2.0 Amp max (connectors sold separately)
- SUN80 SOLAR PANEL SPECIFICATIONS
- Weight: 3.42 lb (1.55 kg)
- Folded size: L: 16" (407 mm) • W: 10.75" (273 mm) • H: 1.25" (32 mm)
- Open size: L: 49" (1245 mm) • W: 16" (407 mm) • H: 0.12" (3 mm)
- Output voltage: 36.0 Volts
- Output current: 2.2 Amps max
- Total output: 80 Watts
User Manual Download
- Click Here for K-1 User Manual and Safety Guide.
- Click Here for Sun80 Solar Panel User Manual.
- Click Here for K-1 Outboard Kit Quick Start Guide
Collapsible content
Warranty
1 year warranty from date of purchase from Bixpy.com or an authorized dealer
